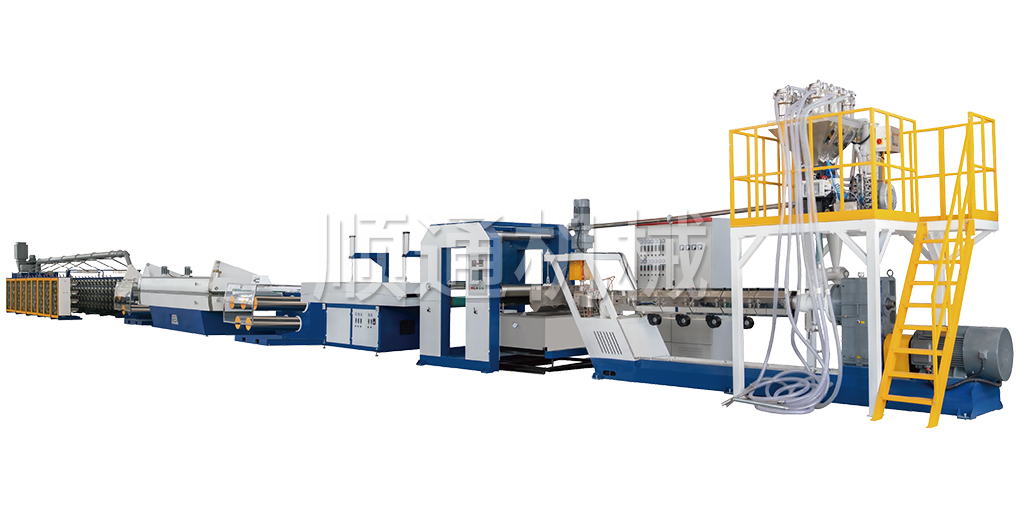

●The equipment can be applied to the production of: woven bag, container bag, tonne bag, carpet base cloth, grass-proof cloth, PP woven geotextile and so on.
| Raw material | PE、PP |
| Screw material | 38CrMoALA |
| Screw Diameter（mm） | Ф70-Ф120 |
| Screw L/D ratio（L/D） | 33比1 |
| Screw speed（rpm） | 10-90 |
| Production capacity（kg/h） | 40-250 |
| Host drive power（kw） | 22-120 |
| Moulded lip length（mm） | 800-1600 |
| Tensile strength | 4到8 |
| Length of haul-off rollers（mm） | 800-1600 |
| Fibre range（Dtex） | 60-200 |
| Rewinder（Spindles） | 280-560 |
| Cylinder tube specification (bore x length)mm | Φ38-Φ90×230-300 |
| Top speed（m/min） | 140-350 |
| Installed power（approx.）kw | 110-420 |
| Actual power (approx.)kw | 60-280 |
| Installed size (L×W×H)m | （25-52）×3×3 |
