Performance characteristics
●Online artificial turf filament straight yarn single bundle;
●On-line artificial turf yarn straight plus curved yarn bundling;
●Artificial turf yarn single bundling equipment for winding of straight sports grass and leisure grass yarn straight plus curved;
●One bale winding and shaping, reducing the wear and tear on the turf yarn in the secondary process;
●Easy to operate, reducing labour cost and eliminating the process of secondary twisting, winding or double twisting;
Constant tension winding ensures the same tension inside and outside, which ensures smoother yarn withdrawal during tufting, faster tufting speed and higher efficiency;
The machine can meet the requirements of winding different kinds of grass yarns, simplifying the production process of grass yarns of various specifications and meeting the requirements of tufting machine production, reducing the labour cost and improving the production efficiency.
Patents
●Single bundle winding of artificial turf yarns
Patent No.: 202120345591.1
●Straight and curved one-step bundle winding
Patent No.: 202121655093.3

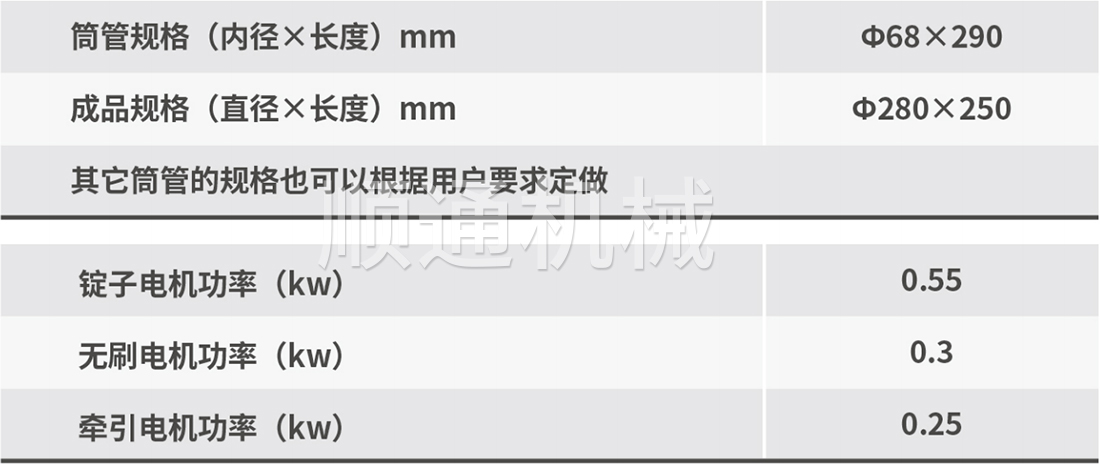

Main technical parameters
●With timing device, full pipe alarm function
●Wire breakage stopping device (optional)
●Bundle spacing can be adjusted (10-20mm)
●Maximum spindle speed (5600rpm)
●Line speed(50-100m/min)
●Constant tension control
●Winding device is controlled by energy-saving brushless motor
●Optional straight and curved payoff platform and constant tension payoff device
