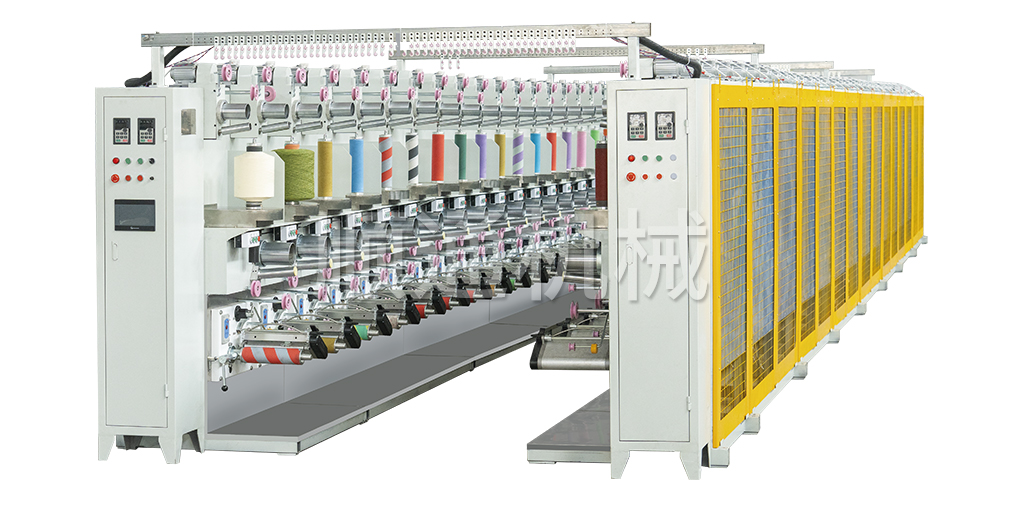

Performance characteristics
●Online artificial turf yarn curved wrapped straight twisted;
●On-line artificial turf yarn straight yarn single bundling;
In-line artificial turf yarn bundling with straight and curved yarns; (optional straight and curved unwinding platform and constant tension unwinding device are available)
Applicable to the winding of straight sports grass and leisure grass yarns with straight and curved yarns;
●One-time winding and shaping, reducing the wear and tear of the lawn yarn in the secondary process;
●Easy to operate, reducing labour cost, eliminating the process of secondary twisting, winding or double twisting, which is the latest advanced process for producing artificial grass yarn;
●Constant tension winding ensures the same loosening and tightening inside and outside, which ensures smoother yarn withdrawal during tufting, faster tufting speed, higher efficiency and other advantages;
It can meet the different requirements of winding grass yarn, simplify the production process of various specifications of grass yarn, and meet the production requirements of tufting machine, reduce the cost of labour, improve the production efficiency, and is well received by the customers in the use of the unanimous praise.
Patents
●Single bundle winding of artificial turf yarns
Patent No.: 202120345591.1
●Straight and curved one-step bundle winding
Patent No.: 202121655093.3
●Curved yarn payoff frame constant tension control device

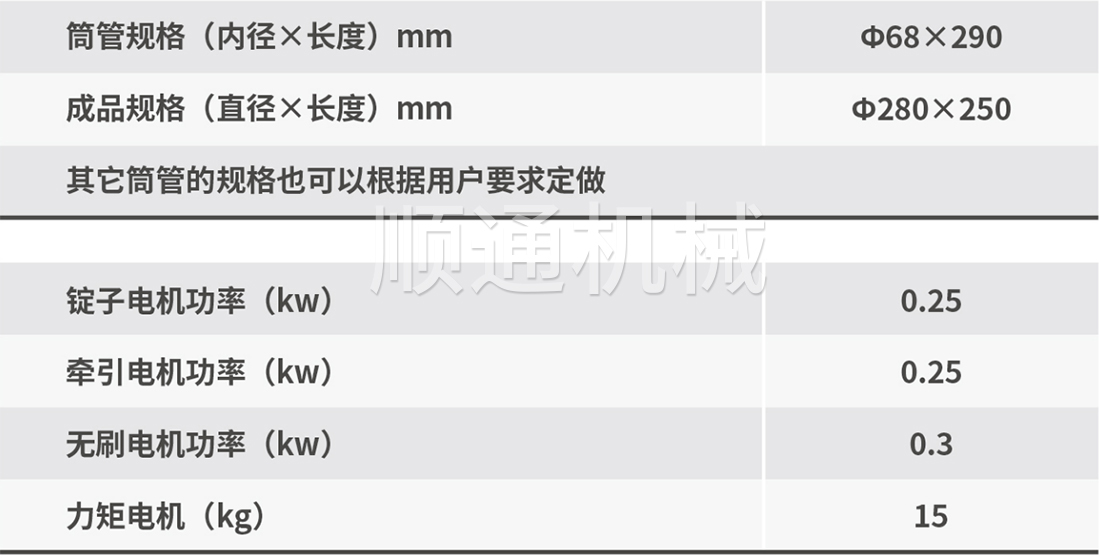

Main technical parameters
●With timing device, full pipe alarm function
●Wire breakage stopping device (optional)
●Bundle spacing can be adjusted (10-50mm)
●Maximum spindle speed (4600rpm)
●Line speed(50-100m/min)
●Constant tension control
●Winding device adopts energy-saving brushless motor control
●Optional straight and curved unwinding platform and constant tension unwinding device
